Reliable testing of mechanical impact resistance for electrical equipment enclosures
Manufacturers of electrical and electronic products for special applications require particularly robust enclosures with increased mechanical resistance. Typical applications include harsh environments or public installations (e.g., outdoor kiosks, ticket machines, digital signage), or when a tender document or end customer requires a specific IK class. Our accredited test laboratory in Puchheim, near Munich, provides you with comprehensive IK protection class tests in accordance with IEC 62262 – the follow-up standard to EN 50102. We also take other requirements from the respective end product standards into account.
What is the IK degree of protection?

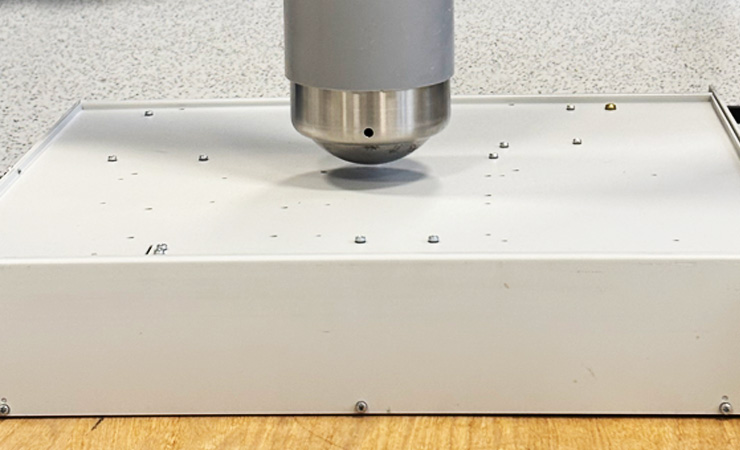

The IK protection class classifies the mechanical impact resistance of enclosures against external influences. In accordance with IEC 62262, the resistance is tested using defined impact energies that act on the enclosure using standardized test geometries.
|
IK degree of protection |
IK00 |
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
IK11 |
|
Impact energy (joule) |
No impact resistance |
0.14 |
0.2 |
0.35 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
Our services at a glance
Our laboratory offers flexible testing setups for enclosures and components of various sizes, from small parts to large assemblies. We support you with standardized testing of protection ratings according to IEC 62262 to ensure maximum safety and quality of your products.
- Early detection of defects and cost reduction: We support you with our expertise right from the development process to avoid expensive rework.
- Standard-compliant protection class testing: We ensure that your enclosure meets the latest normative requirements.
- Automatic testing of relevant standard deviations: Our testing procedures integrate current standard deviations for a comprehensive assessment.
- Flexible test sections: Tests are customized to your products and requirements upon agreement.
- Workshops, training, and webinars: We offer training courses on the contents of current standards and interpretations, as well as customized training for your product or general topics related to product safety.
